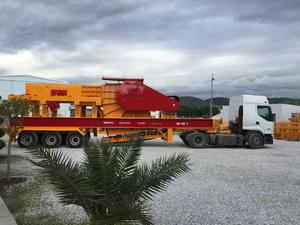

Mobile Primery Jaw Crusher for sale. - Hertzogville

Mobile Primary Jaw Crushing Units have a quick and easy installation which high capacity and performance, through hydraulic cylinder. Ease of handling and to have starting ease of operation in short time which is most preferred our mobile unit. Our units which have 50-350 t/h capacity , supplied creating of General Machine Crusher trademark at domestic and abroad in many years.

This machine which is known mobil crusher is used primary crusher at facility.

Mobile Jaw Crusher is designed to break the stone as Portable.
Capacity: 200 t/h
PRODUCT NAME: 90’ MOBILE JAW CRUSHER
FEATURES:
VIBRATING HOPPER AND FEEDER
1-PRIMERY TYPE GNR90 – 1 Pc
A.Type : GNR25
B.Capacity : Hopper 25 m3
C.Drive : 4 kW x 2 Pcs
D.Size : 1000 x 3750 mm
E.Upper Plates : 10 mm thick ST37 standart made up of sheet iron.
F.Hopper Side Plate : 10 mm thickness ST37 standart made up of sheet iron.
G.Inner Plate : 8 mm replaceable type. HARDOX
H.Supported with Vibro-Motor.
İ.The bunker reservoirs are reinforced by the folding sheets.
J.Bunker designed for truck feeding.
K.There are sailor chains on the bunker front door so that the stones do not escape to the machine during unloading of the truck.





MOBILE JAW CRUSHER
2. PRIMARY TYPE GNRK 90 – 1 Pc
Type: GNRK-90
Input Size : 900x650mm.
Output Size : 70-180 mm.
Capacity : 180- 250 t/h
Drive : 75 kW V-belt with electric motor - powered.
Flywheel Speed : 293 ( r/min)
Jaw Plates : %16-18 Mn.+% 2,2 Cr. Alloyed Cast Iron.
Bearings : Heavy Dutytype, Spherical Roller Bearings (SKF)
Jaw Crusher Is Setting Mechanism can be adjusted easily.

Conveyor Belt – 1 piece 7000mm
Our factory General Makina is located in Izmir/Turkey.
